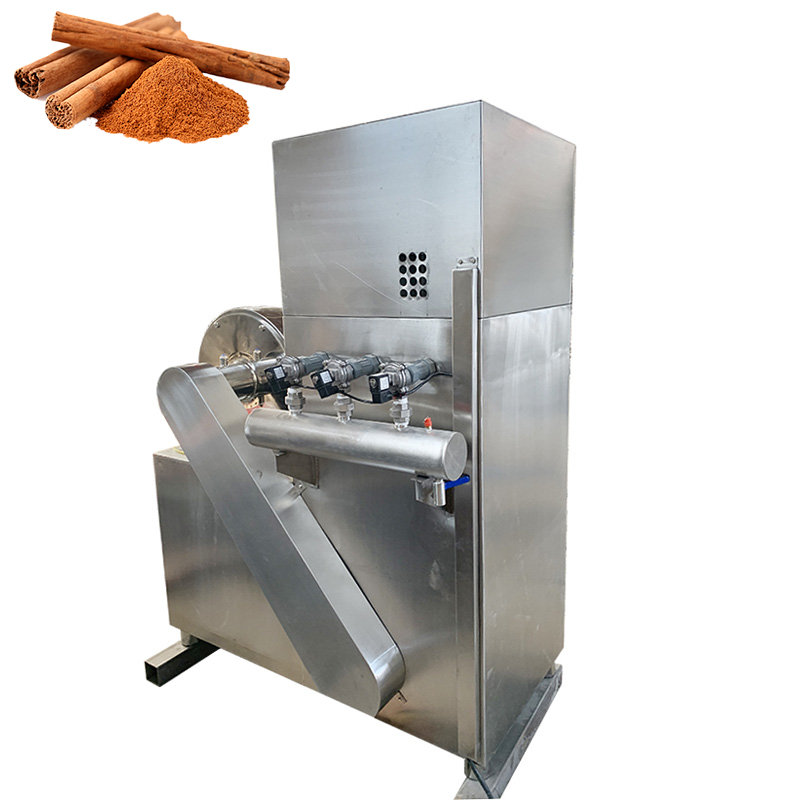

Cinnamon Universal Crusher

Cinnamon Universal Crusher

  • 1.ntegrated crushing and vacuum cleaning system with a built-in negative pressure dust extraction system. Fine dust generated during crushing is filtered and recovered through fabric bags or filter cartridges, ensuring no dust leakage or flying throughout the process, keeping the workshop clean and minimizing material loss.

    2.Qualified powder materials fall automatically into the collection bag due to centrifugal force, while ultra-fine dust is uniformly collected. This not only prevents raw material waste but also protects the respiratory health of operators.

Phone:+86-13812179686‬
E-mail:amy@hengnaigrinding.com

grinding machine has a simple structure, consisting of three parts: an inlet, an outlet, and a grinding tooth chamber. It is easy to operate, with simple on/off functions. Cleaning and maintenance are convenient. The fineness of the powder can be adjusted by replacing the sieve, and water can also be added for circulation cooling. Spices such as corn, star anise, cinnamon, chili peppers, dried scallops, clove leaves, red cardamom, cumin, Sichuan pepper, cardamom, cassia bark, bay leaves, dried chili peppers, fennel, grass fruit, white cardamom, sand ginger, cloves, aromatic sand, grass cardamom, meat cardamom, red cardamom, galangal, mountain nutmeg, angelica root, licorice, tangerine peel, luo han guo (monk fruit), long pepper, dried ginger, sweet flag, lingcao, gansong, as well as various food additives, can all be ground into powder using this machine.

Technical Data

Model

WF-30

WF-40

WF-60

WF-80

Production Capacity

30-300

40-800

60-1000

80-1500

Discharge Particle Size

12-120

12-120

12-120

12-120

Main Motor Power

5.5

7.5

22

30

Vacuum Motor Power

1.5

3

7.5

11

External Dimensions

1225*550*1750

1325*700*1820

1000*1100*2000

2450*1200*2500

Weight

300

450

1100

2000
