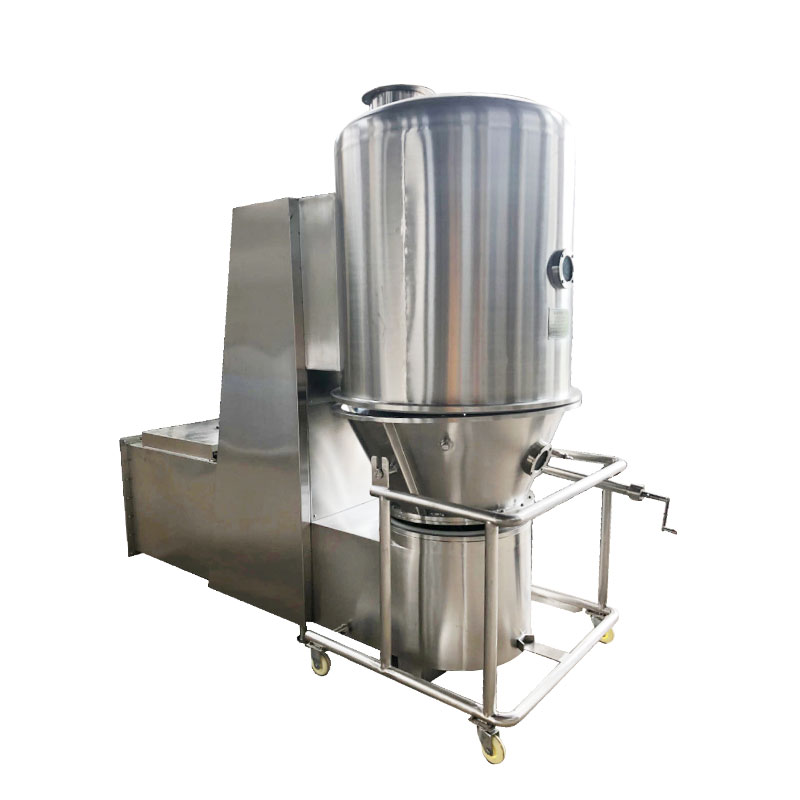

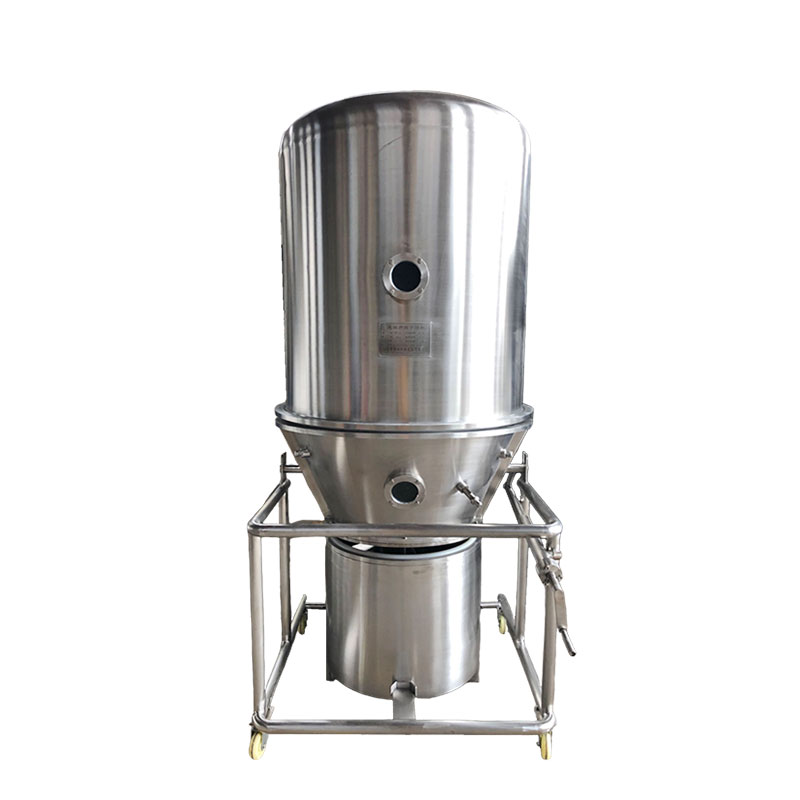

Widely applied in granulation for tablets, granules and capsule pellets.
Features
Integrates mixing, granulation and drying functions into one unit. It features high automation, fast granule formation and rapid drying performance.
Working Principle
Single or multiple powder raw materials for granulation are fluidized inside the fluid bed while being mixed simultaneously. Binder is atomized and sprayed onto the fluidized material surface via a special spray gun. Materials agglomerate into granules and get dried, with evaporated moisture exhausted by the fan.
Technical Parameters
| Type | 5 | 15 | 30 | 60 | 120 |
|---|---|---|---|---|---|
| Production Capacity | 4-6 | 10-20 | 20-40 | 40-80 | 80-160 |
| Raw Material Vessel Volume | 22 | 45 | 100 | 220 | 420 |
| Induced Draft Fan Power (kW) | 2.2 | 4 | 5.5 | 11 | 15 |
|
Compressed air |
Consumption (m³/min) |
0.3 |
0.3 |
0.4 |
0.6 |
0.8 |
||||
|
Pressure (Mpa) |
0.4-0.6 |
|||||||||
|
Steam |
Filter and Cyclone Separator (kw) |
3 |
5.5 |
7.5 |
15 |
18.5 |
||||
|
Consumption (m³/min) |
23 |
42 |
70 |
141 |
211 |
|||||
|
Pressure (Mpa) |
0.4-0.6 |
|||||||||
|
Motor Thermal Power (kW) |
7 |
12 |
14.5 |
21 |
30 |
|||||
|
Product Moisture Content (%) |
As low as 0.5 |
|||||||||
|
Operating Temperature (°C) |
Automatic temperature regulation from room temperature to -120℃ |
|||||||||
