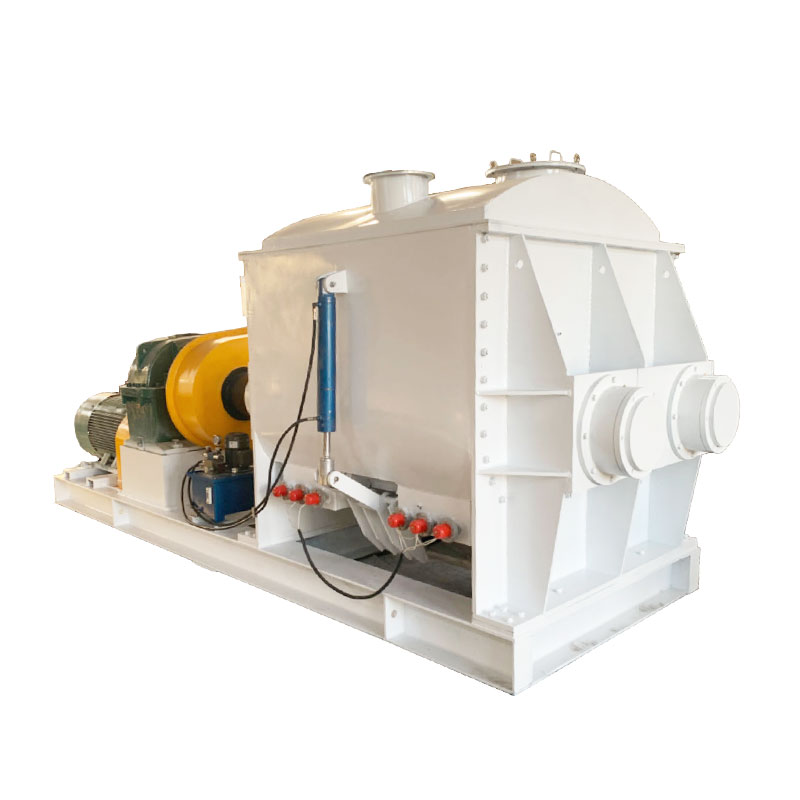

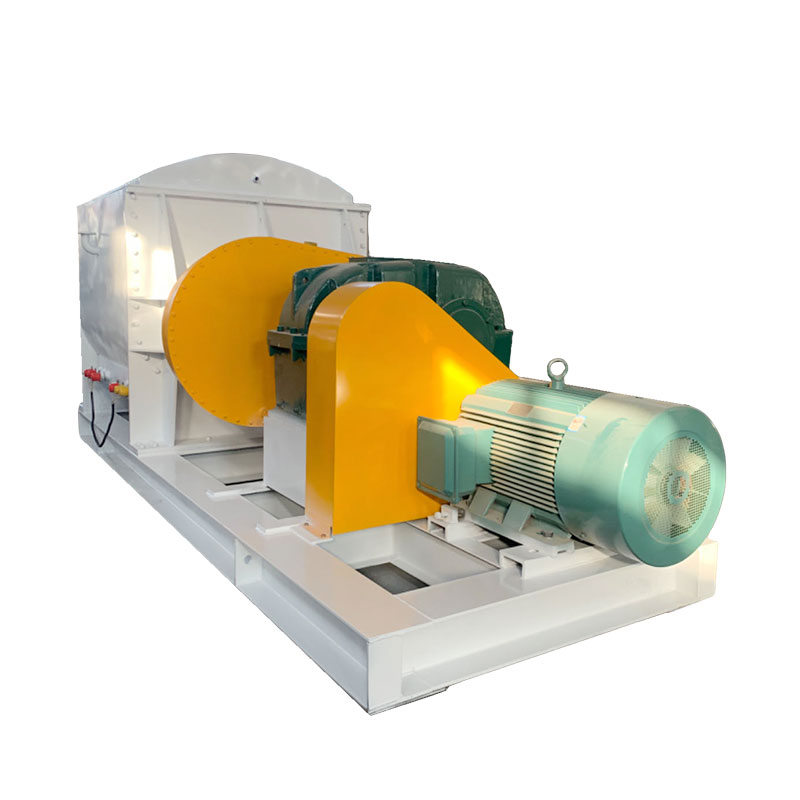

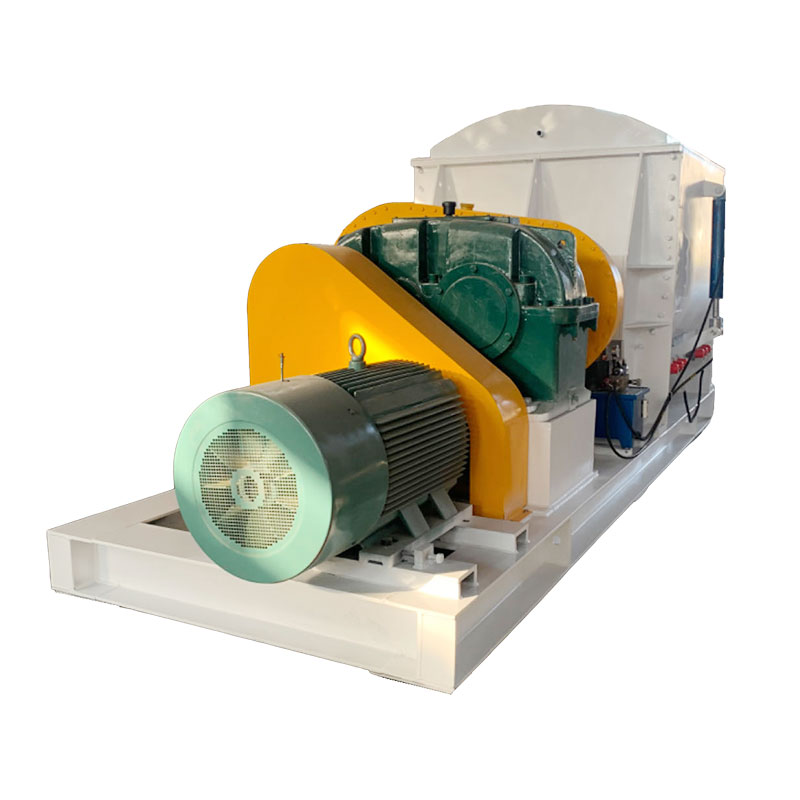

The kneader can knead various viscosities of water-soluble polymers (CMC) and is also applicable to industries such as chemical engineering, plastics, rubber, inks, carbon materials, pharmaceuticals, and food. Components that come into contact with materials are made of stainless steel and carbon steel, ensuring the purity and quality of the products. The machine adopts a 'Z' type double-arm mixing system, which enables rapid reaction and uniform mixing of materials. This product series is divided into three major categories: ordinary type, pressure type, and vacuum type, with two heating methods (electric and steam) and water cooling available for selection.
Discharge Methods: Hydraulic cylinder tilting discharge, manual tilting discharge, ball valve discharge, screw extrusion discharge, etc.
Technical Parameters:
| Model |
500 |
1000 |
3000 |
5000 |
|
Feed Quantity |
350 |
700 |
2100 |
3500 |
|
Main Motor Power |
15 |
18.5 |
90 |
110 |
|
Screw Motor Power |
3 |
5.5 |
15 |
18.5 |
|
Discharge Motor |
0.75 |
1.1 |
5.5 |
7.5 |
|
External Dimensions |
1750*600*1000 |
2350*1000*1200 |
5675*2100*2500 |
9500*2600*2950 |
|
Weight |
1560 |
2800 |
5000 |
8000 |
