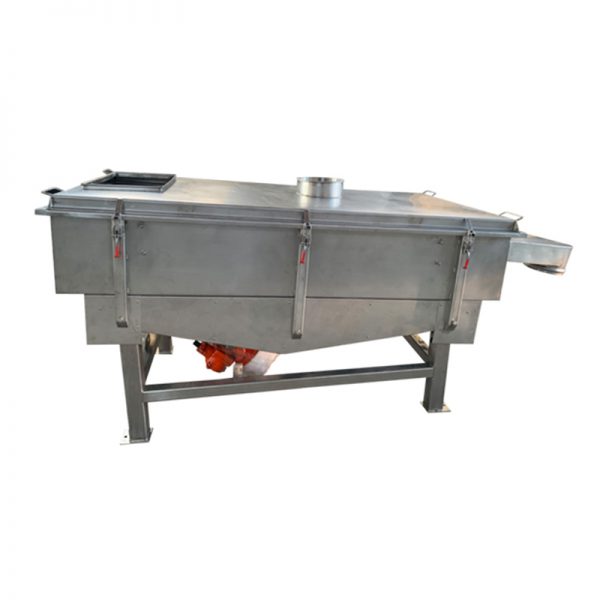

This machine is suitable for grading powders and particles of varying coarse and fine proportions in industries such as pharmaceuticals, chemicals, and food processing, and can continuously sieve materials.
Structural Features:
The machine consists of a vertical vibrating motor, sieve base, mesh frame, and sieving chamber. The rubber oscillating bowl and other fasteners are integrated as one unit. During operation, vibration balls on the mesh frame periodically strike the mesh surface to prevent clogging. This machine can be used for single-layer or multi-layer grading. It has compact structure, convenient operation and maintenance, smooth operation, low noise, large material processing capacity, fine particle size, and strong versatility.
Technical Data
|
Type |
400 |
600 |
800 |
1000 |
1200 |
|
Production Capacity（kg/h） |
100-800 |
200-1500 |
300-2500 |
500-3500 |
800-5000 |
|
Mesh size |
2-200 |
||||
|
Vibration frequency |
1500 |
||||
|
Motor power |
0.2 |
0.4 |
0.75 |
1.1 |
1.5 |
|
External dimensions |
400*600*300 |
600*800*380 |
800*1000*450 |
1000*1200*600 |
1200*1400*800 |
|
Weight |
150 |
220 |
280 |
350 |
420 |
